Satellite panel manufacturing demands materials that can perform at high temperatures without compromising the production process that gets them there. When those two requirements pull in opposite directions, the only solution is a custom formulation built to bridge the gap.
This is the story of how Resin Formulators worked with a satellite OEM to develop RF 1164 A/B, a low-density syntactic epoxy system that combined the high-temperature stability and processability the customer needed in a single qualified material. For a broader look at the materials used in satellite and UAV programs, visit our UAV and satellite materials page.
The Challenge
A satellite OEM had two materials approved for use in their satellite panel edge filling application. Neither product was fully satisfactory on its own, and the customer needed a way to consolidate the best properties of both into one solution.
The first approved material offered strong high-temperature performance, which is a critical requirement for satellite panels that must survive the thermal extremes of launch and operation in orbit. The problem was processability. The material was difficult to work with in production, creating inefficiencies and inconsistencies that added cost and complexity to the manufacturing process.
The second approved material solved the production problem. Its low viscosity made it easy to apply and work with on the line. However, it could not meet the high-temperature performance requirements that the application demanded. Using it alone would have compromised the structural and thermal integrity of the finished panels.
The customer needed a single custom formulation that delivered low viscosity for production ease and high-temperature stability for performance, without sacrificing either.
The Solution
Resin Formulators began a design and development process focused on combining the favorable properties of the customer's two existing approved materials into a single, purpose-built formulation.

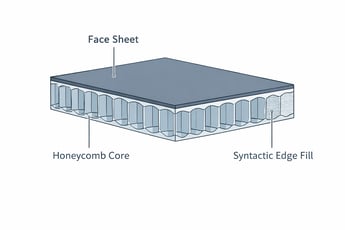

The resulting product, RF 1164 A/B, was developed as a low-density syntactic epoxy system. Syntactic epoxy systems incorporate hollow microspheres into the resin matrix, which reduces density while maintaining structural performance. In this application, that approach also contributed to the flow characteristics the customer needed for consistent edge filling across panel production.
RF 1164 A/B delivered the following for this application:
Low Viscosity for Production Processing
The formulation provided the flow required to fill panel edges consistently and efficiently, addressing the production difficulty that made the first approved material problematic to use at scale.
High-Temperature Stability
RF 1164 A/B met the thermal performance requirements for satellite panel applications, providing the temperature resistance that the second approved material lacked.
A Single Qualified Material
Rather than managing two approved materials with conflicting trade-offs, the customer now had one formulation that met both their process and performance requirements, simplifying their supply chain and qualification documentation.
This kind of application-specific development is central to how the Resin Formulators team approaches complex materials problems
The Outcome
RF 1164 A/B solved both sides of the customer's challenge. The low-density syntactic epoxy system provided the flow needed for consistent edge filling in production while maintaining the high-temperature stability required for satellite panel performance in service.
The development outcome was not simply a material that split the difference between the two existing products. It was a formulation that genuinely delivered on both requirements, which is a meaningfully different result for a manufacturer who needs confidence in both the process and the finished product.
The success of this project came down to a few factors that are worth highlighting for any engineer or procurement professional working on similar challenges:
Consolidating Approved Materials Reduces Program Risk
Managing two approved materials with different performance profiles creates supply chain complexity and introduces the risk of using the wrong material in the wrong application. A single qualified solution removes that risk entirely.
Custom Development Can Target Both Process and Performance
Off-the-shelf products are formulated for a broad range of applications. When an application has specific and competing requirements, a purpose-built formulation can target both without compromise.
Early Engagement with a Formulator Produces Better Outcomes
Bringing the challenge to Resin Formulators during the design phase, with both approved materials and their limitations clearly defined, gave the development team a well-scoped target. That clarity accelerated the path to a qualified solution.
What This Means for Satellite and Aerospace Manufacturers
Satellite panel manufacturing is one of the more demanding environments for structural and thermal materials. Panels must survive the mechanical loads of launch, the vacuum and radiation environment of orbit, and the thermal cycling that comes with moving in and out of direct solar exposure. Edge filling materials are part of that structural system, and their performance matters.
When existing approved materials cannot fully meet application requirements, the path forward is not always to accept a compromise. In many cases, a custom formulation can be developed that genuinely solves the problem rather than working around it.
Resin Formulators has been developing custom epoxy and polymer systems for aerospace, defense, and space applications for over 60 years. The team works with satellite OEMs, prime contractors, and their supply chains to develop materials that meet the performance, processing, and qualification requirements of advanced programs.
Contact the Resin Formulators team to discuss your satellite panel or aerospace materials challenge. For more examples of Resin Formulators solving complex materials challenges, download the GracoRoberts success stories brochure.
Frequently Asked Questions About RF 1164 A/B
What is RF 1164 A/B?
RF 1164 A/B is a low-density syntactic epoxy system developed by Resin Formulators for satellite panel edge filling applications. It was formulated to provide both the low viscosity needed for production processing and the high-temperature stability required for satellite panel performance in service.
What is a syntactic epoxy?
A syntactic epoxy is a resin system that incorporates hollow microspheres into the matrix. This reduces the density of the cured material while maintaining structural performance, and contributes to the flow and processing characteristics of the uncured system.
Why is high-temperature stability important for satellite panel edge filling?
Satellite panels are exposed to extreme thermal conditions during launch and throughout their operational life in orbit. Edge filling materials are part of the structural system of the panel and must maintain their integrity across the full range of temperatures the panel will experience.
How does Resin Formulators approach custom formulation development? The team works directly with customers to understand both the performance requirements of the application and the practical constraints of the production process. Development targets both dimensions, not just end-use performance, with an on-staff senior chemist leading formulation work from initial brief through qualification. Learn more at our custom formulations page.
Does Resin Formulators offer testing services for custom formulations? Yes. The Resin Formulators facility includes a state-of-the-art in-house advanced material lab that has tripled in size and reduced product development timelines by 50%. Polymer characterization and epoxy testing services ensure consistency, compliance, and reliability before a formulation reaches qualification. Learn more about our advanced material lab testing services.
